Importing your own catalogs¶

acid import turns a pile of tabular files — FITS, CSV/TSV, parquet, or Arrow — into a HATS catalog you can crossmatch, filter, and query like any other. It reads your files, partitions the rows by sky position, writes a HATS-valid directory, and (by default) builds a margin cache so boundary-crossing crossmatches are correct.

You name the source kind as the first word — the file format (acid import parquet, acid import csv, acid import fits, acid import arrow) or a Rubin Butler dataset (acid import butler). acid import peek inspects an input without importing it. Naming the format keeps each format's options under its own verb (CSV's --delimiter lives under acid import csv, not in one giant flag list), and lets you import a file whose extension doesn't say its type (a pipe-delimited survey.dat read as acid import csv survey.dat).

Use it whenever your data isn't already a HATS catalog: a survey table you downloaded as FITS, a CSV of targets a collaborator emailed you, a parquet export from a database, or a Rubin Butler dataset. The files can be on local disk or a remote store — an http(s):// URL or an s3:// / gs:// / az:// bucket — read straight from the source (see Importing from a URL or object store).

The same command scales from a laptop to a cluster. A file that fits in memory is imported in one pass; a billion-row pile too big for RAM is shuffled out of core through an in-memory exchange — you don't choose, acid picks the path from the input size (and always tells you which one it ran). The flags are identical either way.

An import either completes or fails loudly — it never produces a half-written catalog, and the only rows it ever drops are those with null/NaN coordinates, which it reports by count as it goes (see Did the import work?). Astronomers fear silently missing rows; acid import is built so you never do.

The full flag set with defaults is in the CLI reference; this page is the task-shaped overview.

Which columns are your coordinates?¶

Before the first import you need to know two things about your file: which column is RA and which is Dec (acid never guesses them). If you didn't write the file yourself, peek at it:

acid import peek tractor-1126p222.fits

Format:  fits
File:    tractor-1126p222.fits
Rows:    7,042
Columns: 207
Bytes/row: ~1.2 KiB  (1,232 B)

  column         type         bytes  unit
  -------------  -----------  -----  ----
  release        int16            2
  brickid        int32            4
  objid          int32            4
  type           str             16
  ra             float64          8  deg
  dec            float64          8  deg
  dchisq         float32[5]      20             [array]
  ebv            float32          4  mag
  ...

Coordinates: looks like --ra ra --dec dec
Note:    all 2 files must share these columns (order may differ).

acid import peek reads only the file's metadata (a parquet footer, a FITS header, or a small CSV sample) — it never loads the whole file and writes nothing. It auto-detects the format, then prints it, the row count, every column with its type, per-row byte size, and unit, flags any per-row array columns (see Working with real survey FITS), and guesses the RA/Dec columns by name so you can copy them straight into the real command. The bytes column and the Bytes/row total are the in-memory size of one row — exact where it's cheap to know (FITS column formats, the parquet footer's per-column sizes) and a sampled/typical estimate otherwise, so multiplying by your row count gives a quick footprint to size --workers / --ram-budget against. An [array] column carries its real per-row size (e.g. dchisq above is 20 B = 5 × 4), not a flat guess. peek takes no --out / --ra / --dec. It works on a remote source too — acid import peek s3://bucket/cat/file.parquet (with --storage-option for credentials) reads just the footer, not the whole object (see Importing from a URL or object store).

When more than one column looks like a coordinate (e.g. ra, raj2000, ra_icrs), peek suggests the plainest name and lists the rest so you can choose deliberately:

Coordinates: looks like --ra ra --dec dec   (other candidates: raj2000, dej2000)

If it finds nothing coordinate-like, it says so and you pass --ra/--dec by hand.

Import in one command¶

Name the format, point it at your file, name the output, and tell it the coordinate columns:

acid import fits tractor-1126p222.fits --out legacy_dr10 --ra ra --dec dec

That writes a HATS catalog named legacy_dr10. Because --out is a bare name (no slash), it lands in your catalog library — under the first writable ACID_PATH root — so you can re-open it by that name from anywhere:

import acid

cat = acid.open("legacy_dr10")
print(cat.head(5).to_astropy())

To put the catalog somewhere specific, give --out a path (anything with a /), used verbatim:

acid import fits tractor-1126p222.fits --out /data/hats/legacy_dr10 --ra ra --dec dec

That's the whole happy path. The same command works unchanged whether the input is one 17 MB brick or ten thousand of them totalling a terabyte — see A pile of files and Tuning for scale.

A worked example¶

The DESI Legacy Survey publishes its catalogs as per-brick FITS Tractor tables — a realistic, freely downloadable example. Grab one brick and import it:

# One ~17 MB Tractor brick from Legacy Survey DR10 (south).
curl -O https://portal.nersc.gov/cfs/cosmo/data/legacysurvey/dr10/south/tractor/112/tractor-1126p222.fits

acid import fits tractor-1126p222.fits --out legacy_dr10 --ra ra --dec dec

Then open it and pull a few rows as an astropy table (units and all):

import acid

cat = acid.open("legacy_dr10")
print(cat.select("ra, dec, type, dchisq").head(5).to_astropy())

The catalog is now a first-class HATS table: crossmatch it against Gaia, filter by type, aggregate — everything in the rest of the user guide applies.

A pile of files¶

A real survey arrives as many files, not one. Point the format verb at a directory and it imports every data file inside:

acid import fits /data/legacy/dr10/tractor/ --out legacy_dr10 --ra ra --dec dec

or at a quoted glob — quote it so acid expands the pattern itself instead of the shell, which matters when the directory holds tens of thousands of files (shell expansion would overflow the argument list):

acid import fits '/data/legacy/dr10/tractor/**/tractor-*.fits' --out legacy_dr10 \
    --ra ra --dec dec

Every input is read as the format you named and must share the same columns (column order may differ between files). That's the normal shape of a survey data release, so it usually just works; if a file is the odd one out, the import fails loudly naming it rather than silently dropping its rows.

To see exactly which files a directory or glob matched before you commit — handy for a fat glob or a remote listing — use acid import peek --list. It prints the full list (one per line — local paths relative to your working directory, remote URLs verbatim), so it pipes cleanly into the usual tools:

acid import peek '/data/legacy/dr10/tractor/**/tractor-*.fits' --list | wc -l
acid import peek '/data/legacy/dr10/tractor/**/tractor-*.fits' --list | head

(Plain acid import peek also shows the first 10 matched files alongside the schema, and points you at --list when there are more.)

Other input formats¶

CSV and TSV¶

CSV imports under acid import csv, but acid recommends a --schema so the column types are pinned rather than inferred (CSV type inference can diverge between files — one chunk looks integer, the next has a decimal). The schema is a small YAML file mapping column names to types:

# stars.schema.yaml
source_id: int64
ra: float64
dec: float64
phot_g_mean_mag: float32

acid import csv stars.csv --out my_stars --ra ra --dec dec --schema stars.schema.yaml

Three CSV-specific knobs (under acid import csv) cover the usual real-world variations:

--no-header — the file has no header row. Name the columns with a positional schema (name: {at: <1-based column index>, type: …}), listing only the columns you want.
--comment-char '#' — skip metadata/comment lines that start with a character (common in survey ASCII dumps and ECSV files).
--delimiter '|' — the field separator, when it isn't a comma (.csv) or tab (.tsv). Pipe- and semicolon-delimited catalogs are common, and naming the format lets the file be called anything (.tbl, .dat, no extension at all):

acid import csv psc.tbl --out two_mass_psc --ra ra --dec dec \
    --delimiter '|' --comment-char '\' --schema psc.schema.yaml

Gzipped CSV/TSV (.csv.gz, .tsv.gz) is read transparently — no need to decompress first:

acid import csv GaiaSource_000000-003111.csv.gz --out gaia_chunk \
    --ra ra --dec dec --comment-char '#' --schema gaia.schema.yaml

Rubin Butler¶

To import directly from a Rubin Butler repository instead of files, use acid import butler with the repo, collection, and dataset type. No LSST stack required — acid reads the Butler itself by default (set ACID_BUTLER_IMPL=stack to use the real lsst.daf.butler instead):

acid import butler --repo /repo/main \
    --collection LSSTComCam/runs/DRP/DP1 \
    --dataset object \
    --out dp1_object --ra coord_ra --dec coord_dec \
    --where "band='r'"

Butler input always uses the out-of-core shuffle. --where narrows which datasets are pulled.

Remote Butlers (Rubin DP1) — no stack, just a token¶

A repo named by an alias (--repo dp1) or pointing at a Butler web service — like Rubin DP1 on data.lsst.cloud — works the same way, stack-free. You need two things in your environment:

$DAF_BUTLER_REPOSITORY_INDEX so the dp1 alias resolves (already set on the Rubin Science Platform and in the LSST stack environment).
An access token. On the RSP it's automatic (acid picks up the notebook's ACCESS_TOKEN for *.lsst.cloud). On a laptop, mint a token from the RSP and export it:

export BUTLER_RUBIN_ACCESS_TOKEN='gt-…'

Then peek and import exactly as with a local repo:

# What's in DP1? (collections → dataset types → a dataset's schema + coords)
acid import peek butler --repo dp1
acid import peek butler --repo dp1 --collection LSSTComCam/DP1
acid import peek butler --repo dp1 --collection LSSTComCam/DP1 --dataset object

# Import one tract of the object table.
acid import butler --repo dp1 --collection LSSTComCam/DP1 --dataset object \
    --where "skymap='lsst_cells_v1' AND tract = 453" \
    --ra coord_ra --dec coord_dec --out dp1_object_t453

The peek summary prints a ready-to-paste acid import butler … command with the coordinate columns filled in, so you rarely type the import by hand.

Constraining a dependent dimension needs its governor

A Butler --where on a dimension like tract must also fix the dimension it depends on — e.g. --where "skymap='lsst_cells_v1' AND tract = 453", not just tract = 453. The server rejects the bare form; acid surfaces that error rather than silently importing nothing.

--collection accepts a glob: --collection 'LSSTCam/runs/DRP/*' imports the dataset type from every matching collection at once, merged into one catalog. Refs are deduplicated by data ID (newest collection wins), so it's the same set acid import peek butler … --list shows for that scope. (The dataset type stays a single exact name — one catalog has one schema.)

Importing a curated set of datarefs¶

--where is a server-side predicate — it can't express an arbitrary, hand-picked set of datarefs. For that, list the refs with acid import peek butler … --list (it emits one self-describing {datasetType, run, dataId} JSON object per line), curate the list, and feed it back with --from-list:

# See exactly which datarefs you'd import, as JSONL.
acid import peek butler --repo /repo/main \
    --collection LSSTComCam/runs/DRP/DP1 --dataset object --list > refs.jsonl

# (edit refs.jsonl to keep only the ones you want, then import just those)
acid import butler --repo /repo/main --from-list refs.jsonl \
    --out dp1_object --ra coord_ra --dec coord_dec

Each line carries its own datasetType/run, so --from-list needs only --repo — --collection, --dataset, and --where don't apply. Use - to read the manifest from stdin and skip the temp file:

acid import peek butler --repo /repo/main \
    --collection 'LSSTComCam/runs/DRP/*' --dataset object --list \
  | acid import butler --repo /repo/main --from-list - \
        --out dp1_object --ra coord_ra --dec coord_dec

A glob (or omitted) --collection on the peek side spans several collections — the lines are deduplicated by data ID, newest collection winning — so this is also how you assemble a multi-collection import set. The manifest must list a single dataset type (one catalog has one schema), and the import fails loudly if any line resolves to no dataset, so a stale or wrong-repo manifest never silently imports a subset.

Importing from a URL or object store¶

Sources don't have to be local. Any scheme:// URL that fsspec understands works — read straight from the remote, no manual download first:

# An https file (peek it first, same as a local one).
acid import peek https://example.org/survey/brick-1234.fits
acid import fits https://example.org/survey/brick-1234.fits \
    --out survey --ra ra --dec dec

# An S3 bucket of parquet shards (quote the glob — acid expands it).
acid import parquet 's3://my-bucket/catalog/*.parquet' \
    --out my_cat --ra ra --dec dec

http(s):// works out of the box. Object stores need their backend package installed — s3fs for s3://, gcsfs for gs://, adlfs for az:// — and acid says exactly which one if it's missing.

Credentials and endpoints go through --storage-option KEY=VALUE (repeatable; true/false/null/integers are coerced), passed straight to the fsspec backend:

# Public bucket (anonymous), or a non-AWS S3-compatible endpoint.
acid import parquet 's3://open-data/cat/*.parquet' --out cat --ra ra --dec dec \
    --storage-option anon=true

acid import parquet 's3://bkt/cat/*.parquet' --out cat --ra ra --dec dec \
    --storage-option endpoint_url=https://s3.example.com \
    --storage-option key=AKIA... --storage-option secret=...

Use --insecure for an HTTPS host with a self-signed certificate (testing / private mirrors only).

Directories and globs over HTTP¶

A directory or glob needs a backend that can list it. Object stores (s3://, gs://, …) always can. For http(s)://, acid reads the server's directory index (the autoindex page nginx/Apache/most data mirrors serve) and scrapes the file links from it — so a bare directory or a glob just works:

acid import fits https://example.org/survey/dr1/ --out dr1 --ra ra --dec dec
acid import fits 'https://example.org/survey/dr1/brick-*.fits' --out dr1 \
    --ra ra --dec dec

Non-data links in the index (a Parent-Directory link, column-sort links, a SHA256SUMS, a README) are ignored — acid keeps only the recognized data files.

If a mirror has its index turned off (no autoindex page to scrape), point acid at a manifest of the files with --from-list. It reads a newline-delimited list of names/URLs, or a checksums file (SHA256SUMS-style HASH␣␣name, auto-detected); # comments and blank lines are skipped, and relative names resolve against the manifest's directory:

# Every file the checksums manifest lists.
acid import fits --from-list https://example.org/survey/dr1/SHA256SUMS \
    --out dr1 --ra ra --dec dec

# Or a subset — a glob filters the manifest's names.
acid import fits 'brick-01*.fits' --from-list https://example.org/survey/dr1/SHA256SUMS \
    --out dr1 --ra ra --dec dec

The other thing to know: remote inputs always take the out-of-core shuffle path. acid can't cheaply size a remote source to decide, so it skips the in-memory tier. Workers stream the remote files directly — nothing is staged to local disk first.

This is for raw input files, not remote HATS catalogs

acid import reading from s3:// / http(s):// is about ingesting your source files. Querying a HATS catalog that lives on a remote store (without downloading it first) is a separate capability — for now, acid download it local first.

Working with real survey FITS¶

Survey FITS tables carry a few quirks worth knowing before you import a real one:

Array columns are preserved (and can be slimmed). A FITS column like dchisq[5] or apflux[8] (a fixed-length array per row) is imported as a nested fixed-size-list column — the per-row array is kept, not dropped, and peek flags it [array]. These columns can be wide, so if you don't need them, slim the catalog with --columns (a comma-separated list; RA/Dec and the HATS spatial index are kept automatically — you never list them):

acid import fits tractor-1126p222.fits --out legacy_slim --ra ra --dec dec \
    --columns ra,dec,type,flux_g,flux_r,flux_z

Column names are case-sensitive. Some catalogs use lowercase (ra/dec), others UPPERCASE (RA/DEC). Pass --ra/--dec exactly as peek shows them.
Unit warnings are harmless. astropy may warn about non-standard TUNIT strings while reading; the data imports fine.

Margin caches are built for you¶

By default, acid import builds a margin cache alongside the catalog when it finishes. The margin is what makes boundary-crossing crossmatches correct — without one, the catalog is rejected as the right side of any XMATCH(...) (see the margin caches guide). The default radius is 10 arcsec:

acid import csv stars.csv --out my_stars --ra ra --dec dec \
    --margin-arcsec 30          # wider margin (match radii up to 30")

acid import csv stars.csv --out my_stars --ra ra --dec dec \
    --no-margin                 # skip it; build later with acid hats build-margin

Set --margin-arcsec at least as large as the widest XMATCH radius you'll ever run against this catalog. Skip it with --no-margin only if the catalog will only ever be a left anchor or filtered by columns, never crossmatched against — you can always build one later. This automatic margin build is the main convenience acid import adds over the upstream hats-import tool.

Tuning for scale¶

The import path is chosen automatically, but you can force or tune it (these flags are shared by every file-format verb):

Flag	Default	When to change
`--mode {auto,inmem,shuffle}`	`auto`	`auto` imports in memory when the input fits RAM, else shuffles out of core. Force `shuffle` to test the big-data path on small data, or `inmem` to require the fast path.
`--workers N`	auto (RAM/cores)	Parallelism. The default is derived from available RAM and the cgroup-aware core count.
`--reader-workers N`	same as `--workers`	Workers for the read + shuffle phase (Pass A) only, leaving the merge + write phase (Pass B) at `--workers`. Raise it for a read-bound source (slow remote I/O, heavy decode) without oversubscribing the write side; lower it to cap reader memory. Out-of-core (`shuffle`) path only.
`--ram-budget BYTES`	`0.5 × available`	The RAM ceiling the planner sizes the in-core exchange buffer against (e.g. `64GB`, `512MiB`) — a budget it grows into as needed, not a block reserved up front. Larger = fewer spills to disk.
`--tmpdir DIR`	`$TMPDIR`	Scratch base for out-of-core spills. Point at fast local storage when `--out` is on a networked filesystem.

acid import always reports which path it ran — the final summary line ends with (inmem) or (shuffle), so a large pile that you expected to shuffle but that went in-memory (or vice versa) is never a silent surprise. For the out-of-core path the startup banner additionally shows what it chose: whether the exchange uses an in-RAM buffer or a temp file, how much RAM it set aside, which directory takes the spills (and its free space), and where the output goes (and its free space). Watch those free-space numbers on a constrained machine.

The shuffle has finer HEALPix-order knobs (--order, --max-order, --rows-per-partition) for unusual data distributions; the defaults are right for nearly everything — see the CLI reference.

Did the import work?¶

The first answer is visual. When you run acid import in a terminal, the last thing it prints — once the catalog, its point_map.fits, and (unless --no-margin) the margin cache are written — is a Mollweide sky map of the new catalog: a braille projection outline with the footprint shaded in, a density colorbar, and a one-line summary:

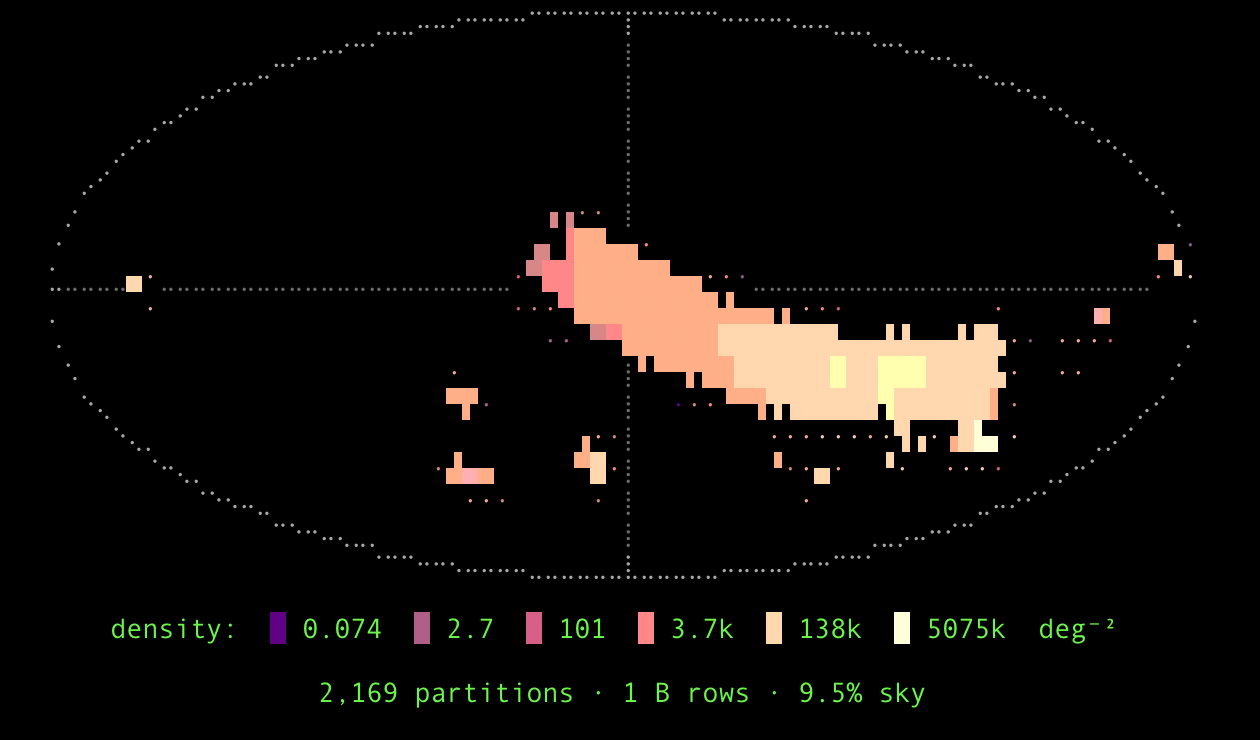

The colour Mollweide sky map drawn at the end of acid import: the new catalog's footprint shaded by source density inside the projection ellipse, a density colorbar in deg⁻², and a partitions / rows / % sky summary.

It answers three questions at a glance: did it land where you expected (RA increases to the left, RA = 0 at the centre, north up — the all-sky convention), did it complete (holes or a lopsided footprint stand out), and how big is it — the % sky is the true covered area at the point_map's native resolution.

The footprint's shape shows coverage area faithfully (a half-covered cell is drawn half-filled); its colour shows source density, read off the deg⁻² colorbar. Two knobs tune it (each also settable in acid.conf or via $ACID_SKYMAP_STYLE / $ACID_SKYMAP_CMAP):

--skymap-style — quadrant (default, area-faithful), blocks (the classic ░▒▓█ density ramp), braille (finer), or off.
--skymap-cmap — auto (default: detects the terminal background and uses magma on dark, gray on light), an explicit gray/viridis/inferno/magma/plasma, or none for monochrome.

The map is drawn only on a terminal — it's omitted when output is piped or under --progress off.

acid import either completes or fails loudly — it never leaves a half-written catalog that looks structurally valid (the same guarantee as acid download). If a worker hits an error, the import aborts non-zero rather than silently dropping rows.

The one place rows are dropped — and it's reported

A row whose RA or Dec is null/NaN can't be placed on the sky, so acid import drops it. This is the only case where the output has fewer rows than the input, and it is never silent — the importer prints a count as it reads each file:

open('stars'): dropped 2/5 row(s) with NULL/NaN coordinates.

If you see no such line, every input row made it into the catalog. (Rows with valid-but-unusual coordinates — say RA = 200° — are kept; only null/NaN are dropped.)

There's no resume: an import is re-run from scratch (re-running over an existing --out needs --overwrite). To double-check the round-trip, compare your input total against the catalog's:

import acid

cat = acid.open("my_stars")
print(cat.count())     # input rows, minus any dropped null/NaN-coordinate rows

A complete round-trip¶

Putting it together — write a tiny catalog, import it, and read it back. First a four-row CSV:

csv = """\
source_id,ra,dec,phot_g_mean_mag
1,45.001,1.501,18.2
2,45.002,1.502,19.1
3,45.010,1.495,17.8
4,45.011,1.488,16.7
"""
with open("stars.csv", "w") as f:
    f.write(csv)

Peek at it, then import (a bare --out lands in the catalog library):

acid import peek stars.csv
acid import csv stars.csv --out demo_stars --ra ra --dec dec --no-margin

Now open it back by name and pull the rows:

import acid

cat = acid.open("demo_stars")
print(cat.count())                       # 4
print(cat.select("source_id, ra, dec, phot_g_mean_mag")
         .sort("phot_g_mean_mag")
         .head()
         .to_astropy())

Appendix: how the out-of-core shuffle works¶

This section is implementation detail for developers and the curious — you don't need it to use acid import.

When the input is too large for memory, acid import partitions it by sky pixel in two passes connected by an in-core exchange ring rather than disk scratch:

Pass A (shard). Workers read input files in parallel and bin each row by its HEALPix pixel at the shuffle order (--order, default 6), building a per-pixel row histogram. Sharded batches are published into a shared anonymous-fd arena — one mmap(MAP_SHARED) region (a memfd where available, else an unlinked temp file) handed between processes by file-descriptor passing — so a batch produced by one worker is read by another with no serialization and no disk write. The arena is a ring of blocks with a small struct-of-arrays control plane (free/reserved/live/flushing states); when it fills, the oldest blocks are coalesced and flushed. --reader-workers sizes this pass alone (defaulting to --workers), so a read-bound source can fan out wider here than the write side.
Pass B (merge + write). The histogram drives a partition plan (--max-order, --rows-per-partition): contiguous pixels are merged into partitions sized for the row budget, oversized pixels are split deeper. Workers read their assigned pixels' batches back out of the ring (or its spill), concatenate them, sort by _healpix_29, and write one HATS parquet partition each — then the partition metadata, point_map.fits, and (unless --no-margin) the margin cache.

The arena is sized by --ram-budget (default half of available RAM); only when it can't hold the working set does it spill to --tmpdir. Keeping the exchange in RAM is the main reason a large import stays I/O- bound on the input read rather than thrashing scratch storage. The full design is in the archived IMPORT-INCORE-EXCHANGE and IMPORT-CLI specs and ARCHITECTURE.md §9.
